Self massage and pressure point therapy for headaches

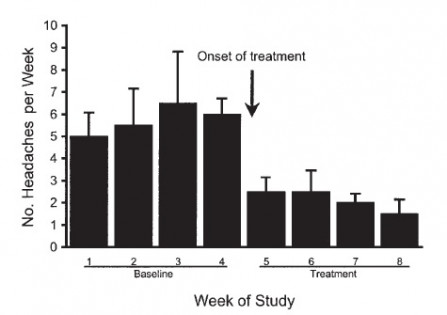

Results from headache trial
Example results of trail of therapy you can easily do yourself

As the results from the clinical trial pictured show, massage or “pressure point” therapy has given excellent relief of headaches. In this article we will show you how to do this at home, including:

  1. where to apply the massage or “pressure point “therapy, and
  2. the simple techniques you can easily do yourself.

CONTENTS

Is your headache something that should be massaged?

We don’t want you doing massage or pressure points if you’ve really got a brain tumour or an aneurysm that’s about to burst, so please check out the guidelines below. Standard disclaimer: this article is for general information only. For specific advice please see a professional familiar with your needs.

An overview of the points

Most videos and articles give inadequate advice

Most articles on pressure points for headaches just give a small number of acupuncture based points. The problems with this are:

  1. there is no way of knowing whether these points are involved or not, and
  2. there are a lot more possible points than they show you. Scientists have identified 9 different muscles that contain points that commonly cause headaches, and each muscle has multiple possible points.

Giving a hand full of acupuncture points makes for great “click bait” headlines, but with only a fraction of the potential points and not knowing if they are actually involved any relief will usually be incomplete and short lived. In this guide we will show you all 9 muscles. It sounds a lot, but don’t worry though. In our video demonstration we will show you a simple routine where you can examine all in under a minute.

About the “pressure points”

Acupuncture and other traditional points

The points involved have been around for ever. When ancient civilisations found them they did not have the scientific knowledge we have today so they made their own systems using beliefs such as acupuncture meridians and “life forces”.

(Myofascial) trigger points

More recently scientists have identified the same points, calling them (myofascial) trigger points, or trigger points for short, and giving them proper scientific analysis. That’s made a huge difference.

  • We can now properly identify them and see if they ‘re involved or not.
  • It has enabled better ways of treating them to be developed.

We will use the scientific approach

The scientific "trigger point" approach has enabled us to properly identify the points involved and treat them effectively. In this guide we will use this approach.

How to find the points

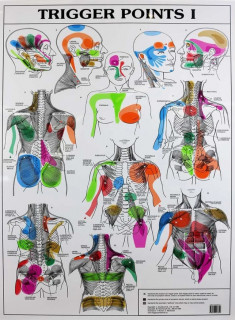

Trigger point chart
Scientists have found these points in muscles and mapped what they do

Overview

The scientists have found:

  1. that trigger points are tender lumps within tight bands of muscle that shoot pain when you press on them, and
  2. developed charts like these that show where each point shoots pain to.

The way we find trigger points is to use the charts to see where to look, then examine looking for the tight muscle, tender lump and the shooting pain. In the next section we will show you the basic examination techniques, then show you specifically where to look in the section on individual muscles and points.

Video demonstration

Please note that later in this article we have a video of Dr Graeme demonstrating all the procedures.

Simple examination techniques to find trigger points

Note: these techniques are demonstrated in the video below.

Examining head muscles for trigger points
Examining the thin muscles covering of the skull. The pads of your fingers are used to examine for tightness, tenderness and lumps.

The Basic examination technique (larger muscles)

Systematically examine each muscle using the flats of your fingers. If an area of tenderness or tightness is found use one or two fingers to examine more deeply looking for a tender lump that shoots pain when pressed upon. Often this shooting pain will mimic your headaches, confirming the points are part of the problem.

Technique for thinner muscles

Some muscles are very thin. These do not require deep pressure, and lumps can be very small and hard to find. Therefore, systematically examine the muscles with the pads of one or two fingers. Treat any area that feels tight or tender and maybe shoots pain when pressed upon.

The simple techniques you can do yourself

The muscles containing headache producing points vary from thin muscles that overlay your skull through to the much thicker muscles on top of your shoulders. Because of this we will show you several effective techniques.

Video demonstration

Please note that later in this article we have a video of Dr Graeme demonstrating all the procedures.

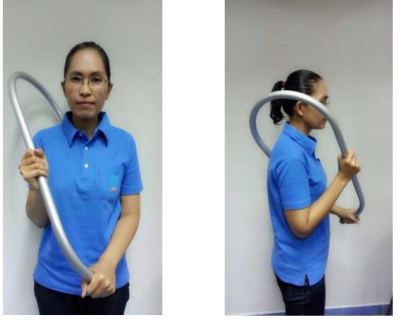

Wilai stick for applying pressure for therapy
This mechanical tool was used to apply pressure in the clinical trial, but if you can reach you can use your fingers or thumb

Basic pressure techniques (larger muscles)

Therapists have found that if you apply pressure to these points they will gradually fade. Therapists often use prolonged painful pressure, but a trial has found that repeated moderate pressure is very effective (1). To do this all you need to do is apply moderate (not painful) pressure for 10 seconds, then repeat for a total of five times. In the video we show you three ways to apply this pressure.

  1. direct pressure with fingers
  2. pinching
  3. using a tool (note: not a ball or roller )
Applying pressure to muscles covering the skull
Applying a pressure technique to "pressure points" in thin muscles covering the skull

Pressure technique for smaller muscles

Many of the muscles of the head, neck and jaw are very thin or overlay sensitive structures. Because of this we will give you a special modified technique. This an amalgamation of the techniques used and found to be very effective in several clinical trials (2–6)⁠.

  1. Using the tip of your finger(s) examine the muscle for tightness and tender lumps (trigger point). Because some of the muscles are thin these lumps may only be felt as localised areas of tightness.
  2. Once found, using the same finger tip(s) apply pressure to your tolerance. You may feel the pain fade and/or the muscle relax. Maintain this pressure until this relaxation is felt, or for a maximum of two minutes.
  3. Finish with about 5-10 seconds of gentle rubbing using a circular motion about 1 cm in
    diameter.
Therapist using a pinching technique
Therapist using a pinching technique

Pinching technique

Some muscles are large enough and placed so they can be pinched, thus avoiding pressure on structures beneath the muscles. In these cases you can use a pinching action to both find the points and to apply the pressure. Use 10 seconds of pressure repeated five times as per the pressure for large muscles technique.

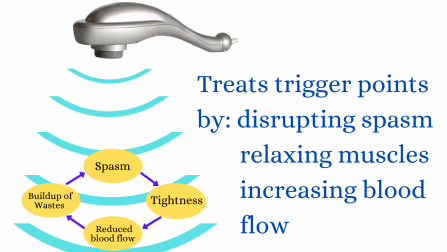

Vibration massage treating trigger points
As this diagram shows vibrations penetrate and scientifically help "dissolve" trigger points or pressure points

Vibration massage

We have mentioned that scientific investigation has helped scientists understand these points and work out better ways to treat them. The best example is vibration massage. For this all you need to do is place the head of a vibration massager ( not a massage gun ) over the trigger point, and as this picture shows the vibrations penetrate, relaxing the muscle, increasing blood flow and helping flush out waste products. This method is the best by far for larger muscles, but is not suited for the very thin muscles and you need a proper massager . For more info please see our article How to treat trigger points .

You will need to keep repeating these treatments

As discussed in our article Why do trigger points keep coming back one or two treatments may provide temporary relief, but treatments will need to be continued to get rid of the problem. Again keeping in mind that this is general information to be discussed with a professional familiar with your own needs, you may need to repeat this daily until the tenderness has done, then less frequently but regularly to maintain your health.

Video demonstration by Dr Graeme

Individual muscles and points

The scientists have found that pressure points or trigger points in the following muscles can cause headaches (2–4,6–11)⁠. In the following section we will go over each muscle individually, showing where the common problems are and recommending the best treatment for each.

Upper trapezius
SCM (Sterncleidomastoid)
Sub occipital
Splenius capitus
Temporalis
Occipitalis
Masseter
Frontalis

Upper trapezius muscles

This diagram shows the upper trapezius muscle with "x" marking the site of common points and the red being where they commonly refer pain to

Massage considerations

The upper trapezius muscle is large and easy to pinch. Our recommended techniques are:

  • vibration massage (pictured above)
  • pressure techniques using pinching
Upper trapezius muscle with common points and pain referral
Upper trapezius muscle with common points and pain referral
Therapist using pinching technique on upper trapezius muscle
Therapist using pinching technique on upper trapezius muscle

SCM (Sterncleidomastoid)

The diagram below shows the SCM muscle with "x" marking the the site of common points and the red being where they points commonly refer pain to.

Massage considerations

The SCM overlies several sensitive structures therefore we only recommend you use pinching techniques. To help find the correct muscles and use the correct technique the second picture below shows the SCM bulging at the front.

Sternocleidomastoid (SCM) muscle with trigger points and pain referral
Sternocleidomastoid (SCM) muscle with points and pain referral
The SCM muscle bulging
The SCM muscle seen bulging at the front of the neck

Suboccipital muscles

The diagram below shows the suboccipital muscles with "x" marking the the site of common points and the red being where they commonly refer pain to.

Massage considerations

These muscles are deeper and at the base of your skull. I'd personally use a vibration massager for the quickest and best results, but for a non-professional a pressure technique using your thumb is probably easiest and best. The picture below shows someone else applying the pressure, but it is easy to use your own thumb. These muscles are often tight secondary to a joint problem so if the issues are difficult to clear or keep coming back please consult a professional such as a Chiropractor, Osteoptah or a Physiotherapist with special post graduate qualifications.

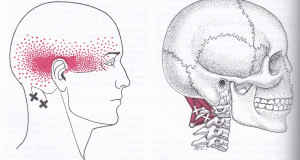

Sub Occipital Muscle trigger points and pain referral
Sub Occipital Muscle trigger points and pain referral
Therapist applying pressure to the sub occipital muscles
Therapist applying pressure to the sub occipital muscles

Splenius capitus muscles

The picture below shows this muscle with the common trigger points and their pain referral pattern.

Massage considerations

These are quite substantial muscles not overlying any highly sensitive structures, therefore vibration massage, self massage and pressure techniques all work well. If you use pressure limit it to light to moderate, and if you use vibration avoid vibrating your skull.

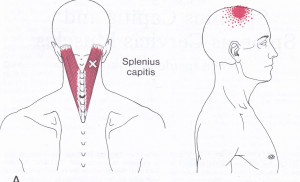

Splenius Capitus Muscle with trigger points and pain referral
Splenius Capitus Muscle with points and pain referral
Self massage of the neck
Applying pressure to some neck muscles.

Temporalis, Occipitalis, Masseter and Frontalis muscles

As shown below these four muscles sit over your skull and your jaw and commonly refer headache pain.

Massage considerations

Because all these muscles are relatively thin and overly either your skull or your jaw only use the pressure techniques for smaller muscles (pictured above).

Occipitalis and frontalis muscles with trigger points and pain referral
Occipitalis and frontalis muscles with points and pain referral
The Masseter Muscle with trigger points and pain referral
The Masseter Muscle with points and pain referral
The Temporalis Muscle with trigger points and pain referral
The Temporalis Muscle with points and pain referral

Reference: summary of clinical clinical trials of massage and trigger point therapy for headaches and migraines

NOTE: You may need to scroll the table below left/right for more information

Trial

What they did

Results

2

One session of trigger point therapy using simple pressure techniques

Relief for about 52% of sufferers. Researches said that these simple techniques can be self applied

3

Eight 30 minute sessions of massage and trigger point therapy over four weeks

Excellent reduction in frequency of headaches

4

Eight sessions of acupressure over one month.

Significant reduction in headaches, including at six moth follow up. The acupuncture points identified by their meridian and number. These largely coincided with the sites of common trigger points.

5

Trigger point therapy twice a week for an average of 6.5 sessions

Headache frequency reduced 67.7%, intensity by 74.3%, and duration by 77.3%. No side effects were noted.

6

Self trigger point therapy three times a day for four weeks.

Intensity, frequency and duration of headaches and use of medications all reduced

References

  1. Wamontree P, Kanchanakhan N, Eungpinichpong W, Jeensawek A. Effects of traditional Thai self-massage using a Wilai massage stickTM versus ibuprofen in patients with upper back pain associated with myofascial trigger points: a randomized controlled trial. J Phys Ther Sci. 2015;27(11):3493–7.
  2. Doraisamy K&, Gnanamuthu. Chronic Tension Type Headache and the Impact of Myofascial Trigger Point Release in the Short Term Relief of Headache. Glob J Health Sci. 2010;2(2):238–44.
  3. Quinn C, Chandler C, Moraska A. Massage therapy and frequency of chronic tension headaches. Am J Public Health. 2002;92(10):1657–61.
  4. Hsieh LLC, Liou HH, Lee LH, Chen THH, Yen AMF. Effect of acupressure and trigger points in treating headache: A randomized controlled trial. Am J Chin Med. 2010;38(1):1–14.
  5. von Stülpnagel C, Reilich P, Straube A, Schäfer J, Blaschek A, Lee SH, et al. Myofascial trigger points in children with tension-type headache: A new diagnostic and therapeutic option. J Child Neurol. 2009;24(4):406–9.
  6. Karimi, N. Tabarestani, M. Sharifi-Razavi A. Efficacy of Trigger Points Self-Massage in Chronic Tension-Type Headache: An Unmasked, Randomized, Non-inferiority Trial. Neurol Asia . 2021;26(February):323–31.
  7. Fernández-de-las-Peñas C, Ge HY, Arendt-Nielsen L, Cuadrado ML, Pareja JA. Referred pain from trapezius muscle trigger points shares similar characteristics with chronic tension type headache. Eur J Pain. 2007;11(4):475–82.
  8. Fernández-De-Las-Peñas C, Alonso-Blanco C, Cuadrado ML, Gerwin RD, Pareja JA. Trigger points in the suboccipital muscles and forward head posture in tension-type headache. Headache. 2006;46(3):454–60.
  9. Palacios-Ceña M, Castaldo M, Wang K, Catena A, Torelli P, Arendt-Nielsen L, et al. Relationship of active trigger points with related disability and anxiety in people with tension-type headache. Med (United States). 2017;96(13).
  10. Jaeger B. Are “cervicogenic” headaches due to myofascial pain and cervical spine dysfunction? Cephalalgia. 1989;9(3):157–64.
  11. Sedighi A, Nakhostin Ansari N, Naghdi S. Comparison of acute effects of superficial and deep dry needling into trigger points of suboccipital and upper trapezius muscles in patients with cervicogenic headache. J Bodyw Mov Ther. 2017;21(4):810–4.

APPENDIX

Is your headache something that should be massaged?

We don’t want you doing massage or pressure points if you’ve really got a brain tumour or an aneurysm that’s about to burst. Because of that we’ll give you some general information here, but for specific advice you’ll need to ask a professional familiar with your own needs.

The types of headaches: primary and secondary

There are two main types of headache: primary and secondary.

Primary headaches

This are the main main type of headaches. They’re caused by pain from structures around your head and neck, typically the muscles of your head, neck and shoulders, or the joints of your upper spine. They’re often called “tension” or “cervicogenic” headaches, but also include migraines. These are usually excellent candidates for massage or “pressure point therapy”.

Secondary headaches

Secondary headaches are caused by something else, such as tumours, aneurysms or a disease. These need care other than massage or pressure point therapy.

General guidelines

This is for general information only and not a substitute for a professional diagnosis.

  • If you see a GP and he or she tells you to go home and take some pain killing drugs he or she has concluded that you haven’t got something like a tumour or an aneurysm.
  • If you’ve had the headache for years and it’s been more or less constant it’s probably not caused by something nasty that you needs urgent medical attention.
